IS Full Kit

IS Full KitThis kit can be used to perform implant surgery for IS-II active, IS-II, IS (Ø3.5~Ø5.0).For S-Wide(diameter Ø5.5~Ø7.0) implant surgery, S-Wide Kit additionally required

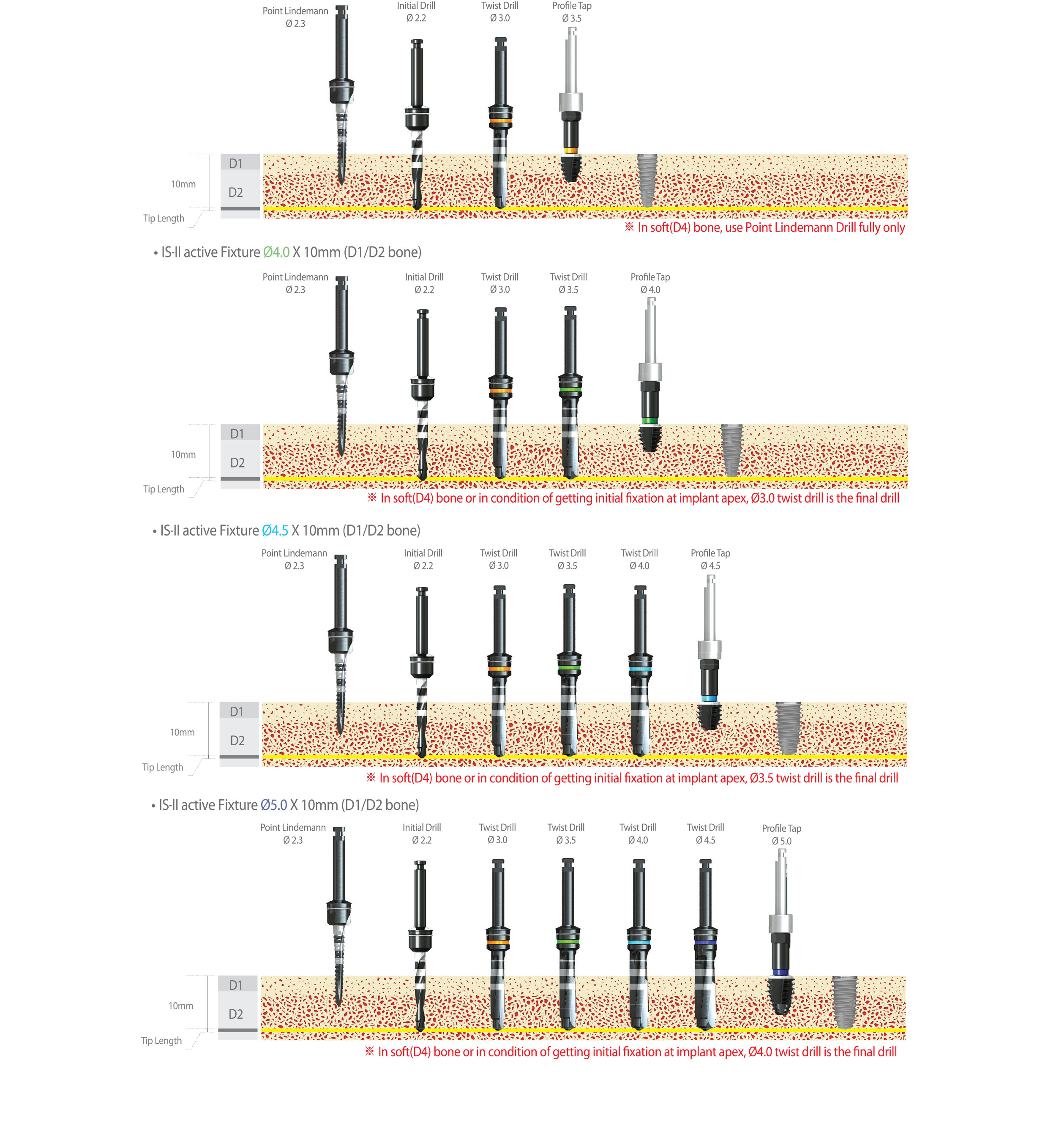

IS Full Kit - IS-II active, IS-II Drilling Sequence

IS Full Kit - IS-II active, IS-II Drilling SequenceDrilling Speed & Torque
Point Lindemann, Initial Drill, Twist Drill : 1,200rpm / 45~35Ncm
Cortical Tap / Profile Tap : 50rpm / 50NcmCortical Drill : 50rpm / 50Ncm
(Conventional Loading case)• IS-II active Fixture Ø3.5 X 10mm (D1/D2 bone)
